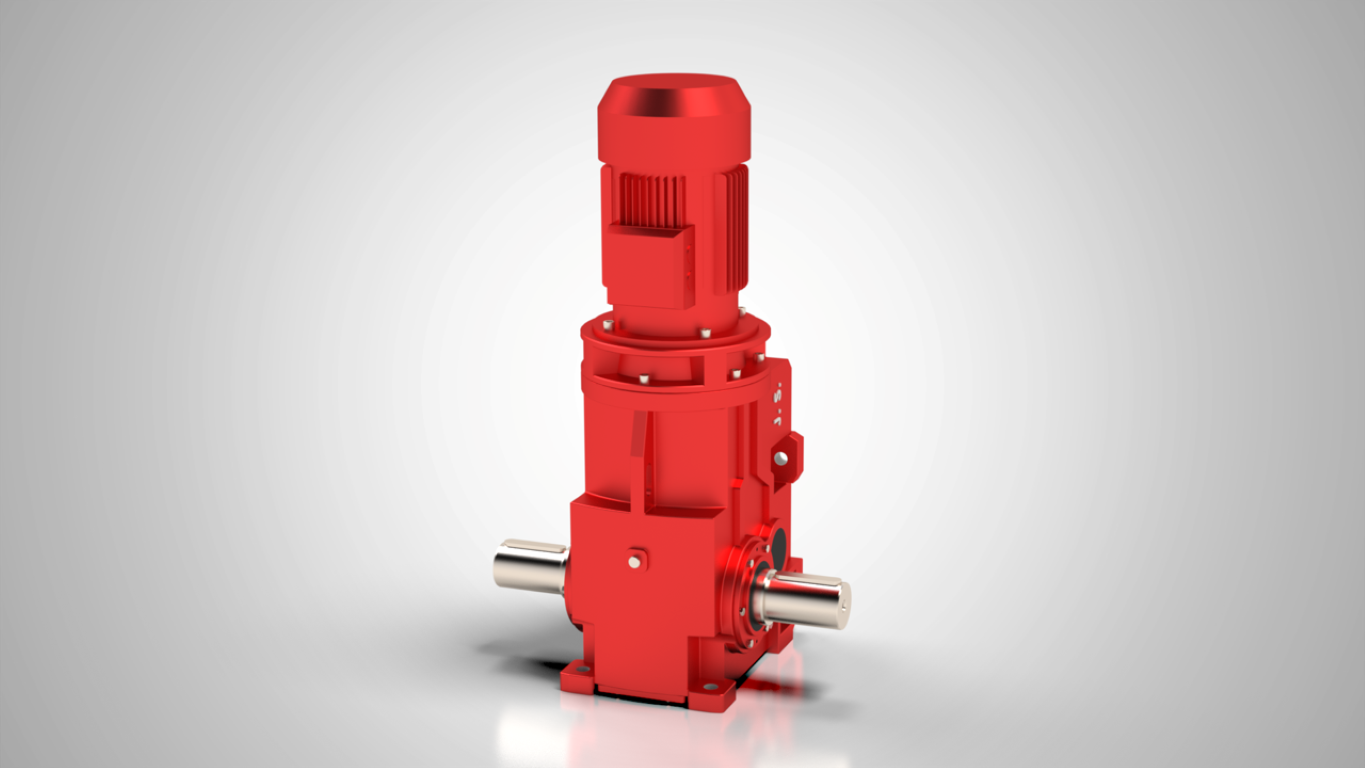

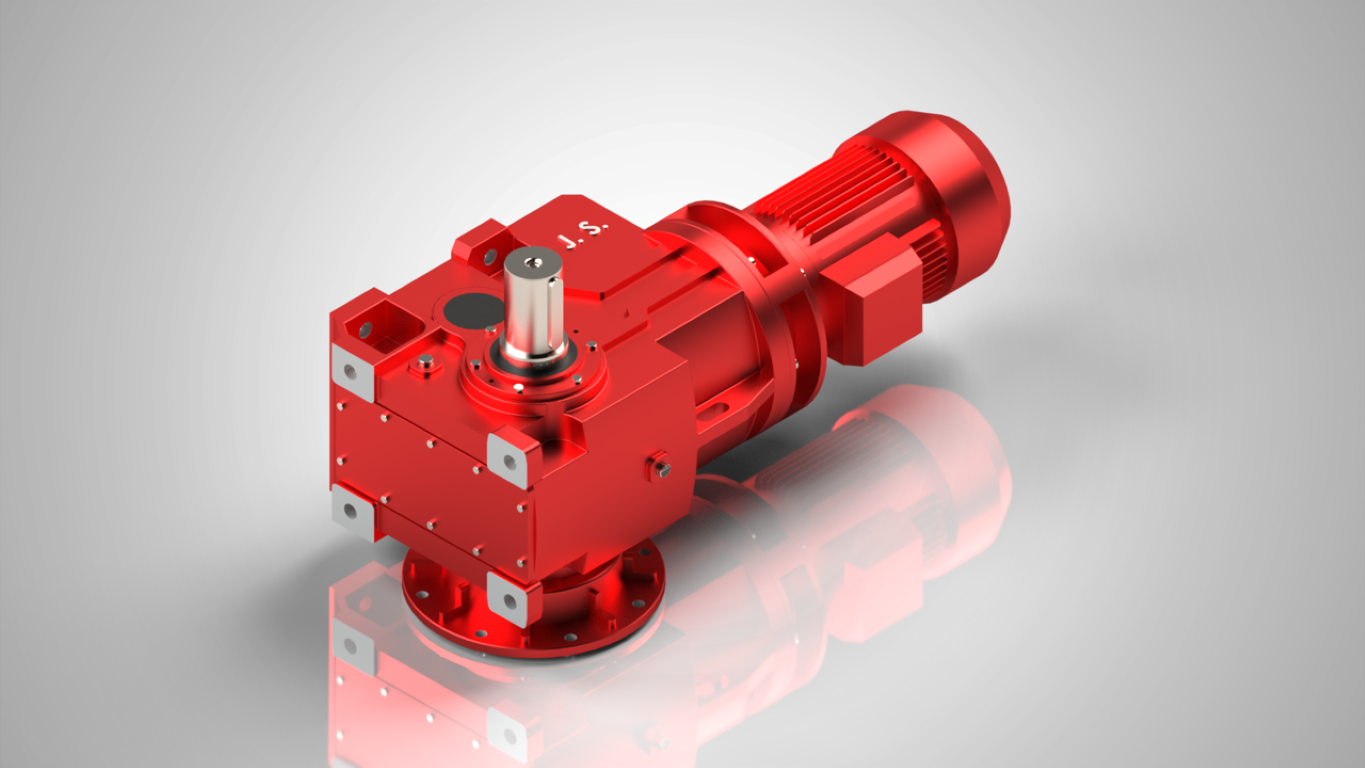

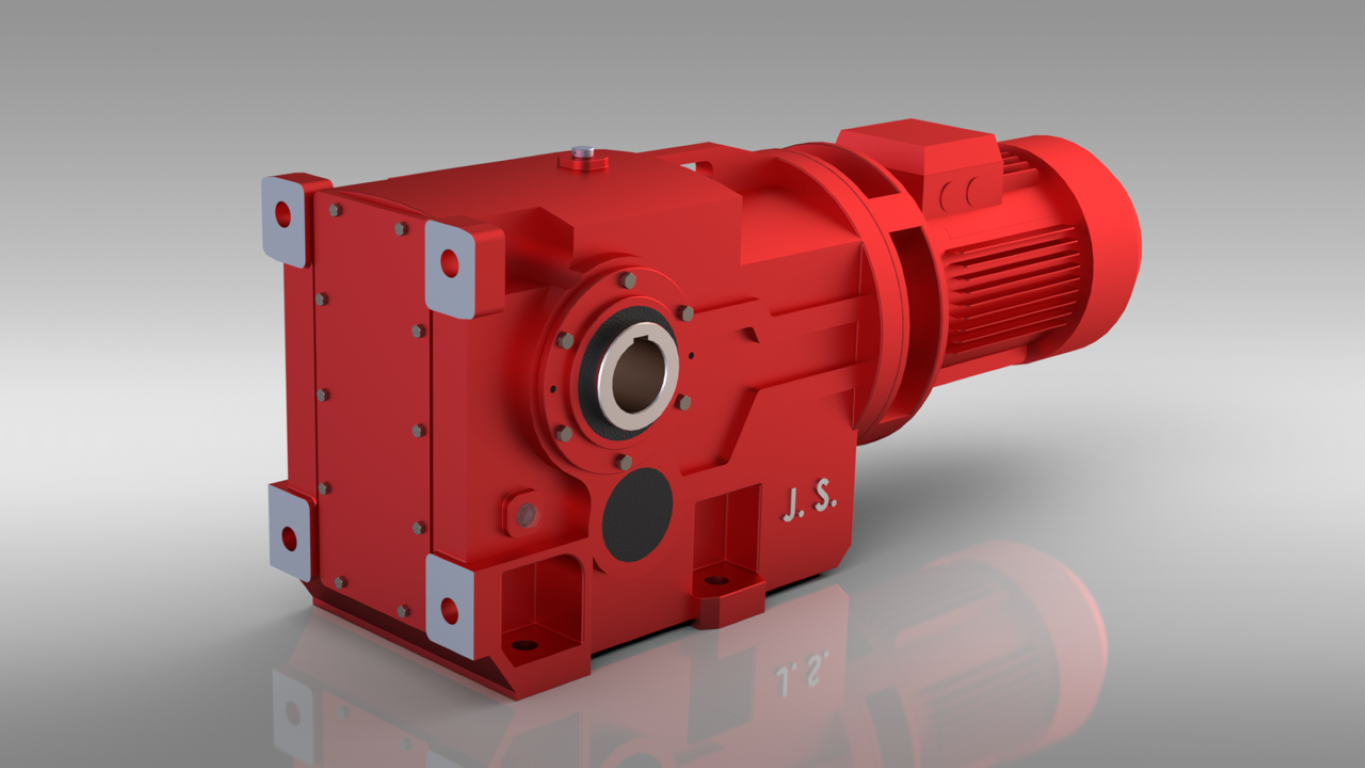

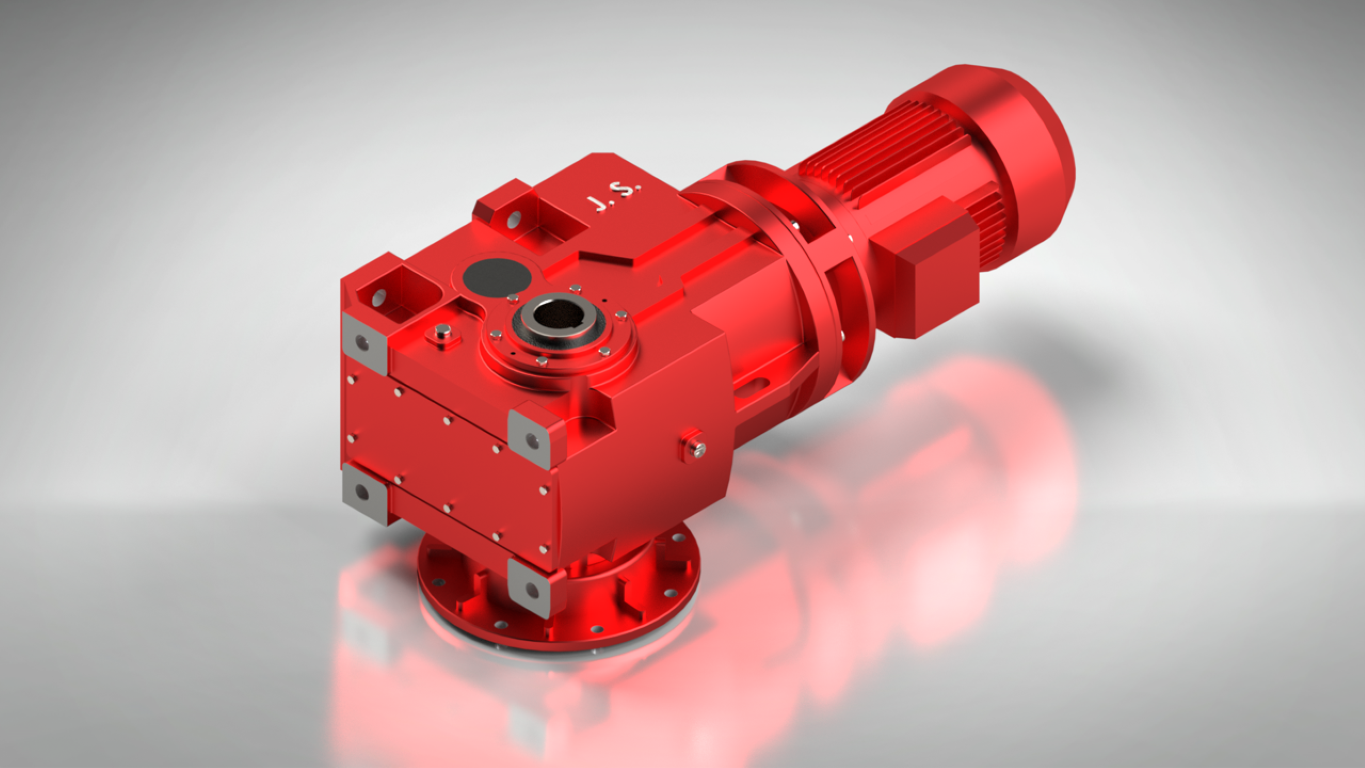

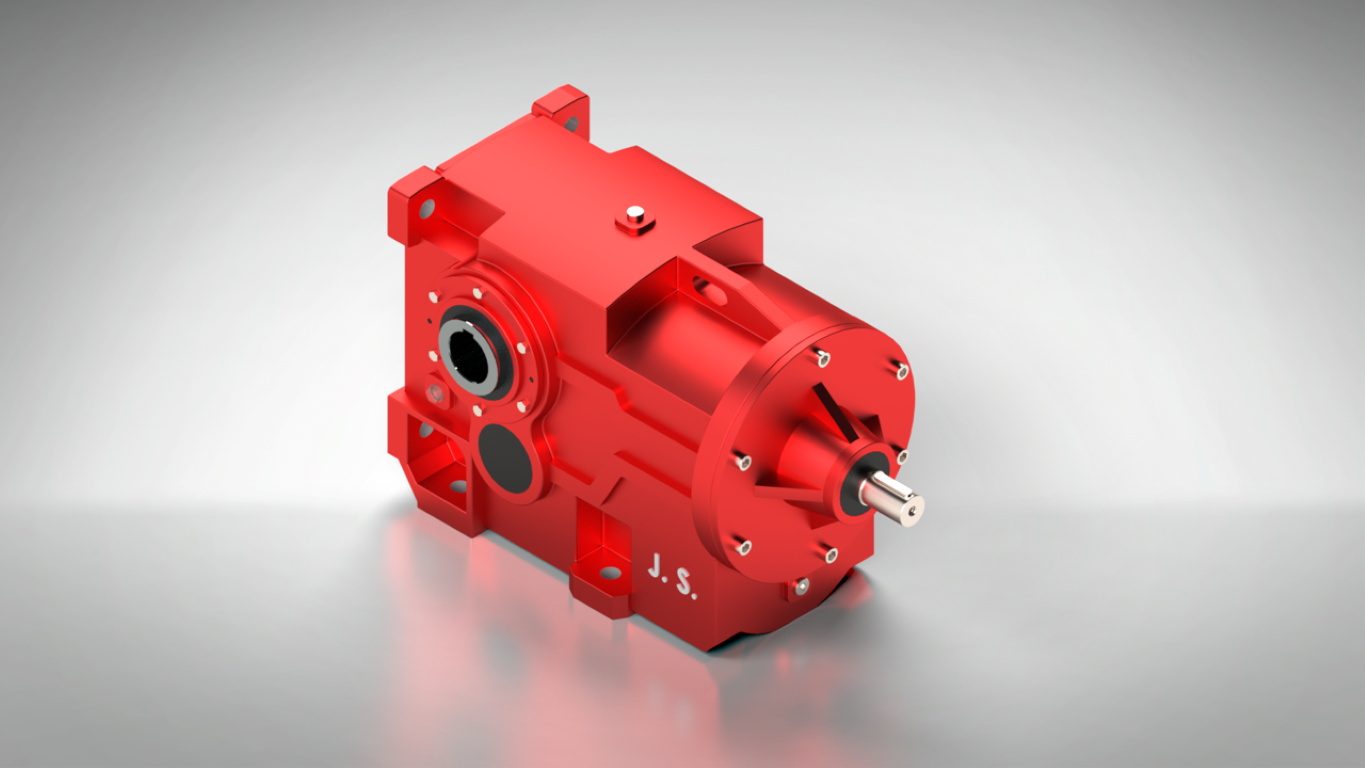

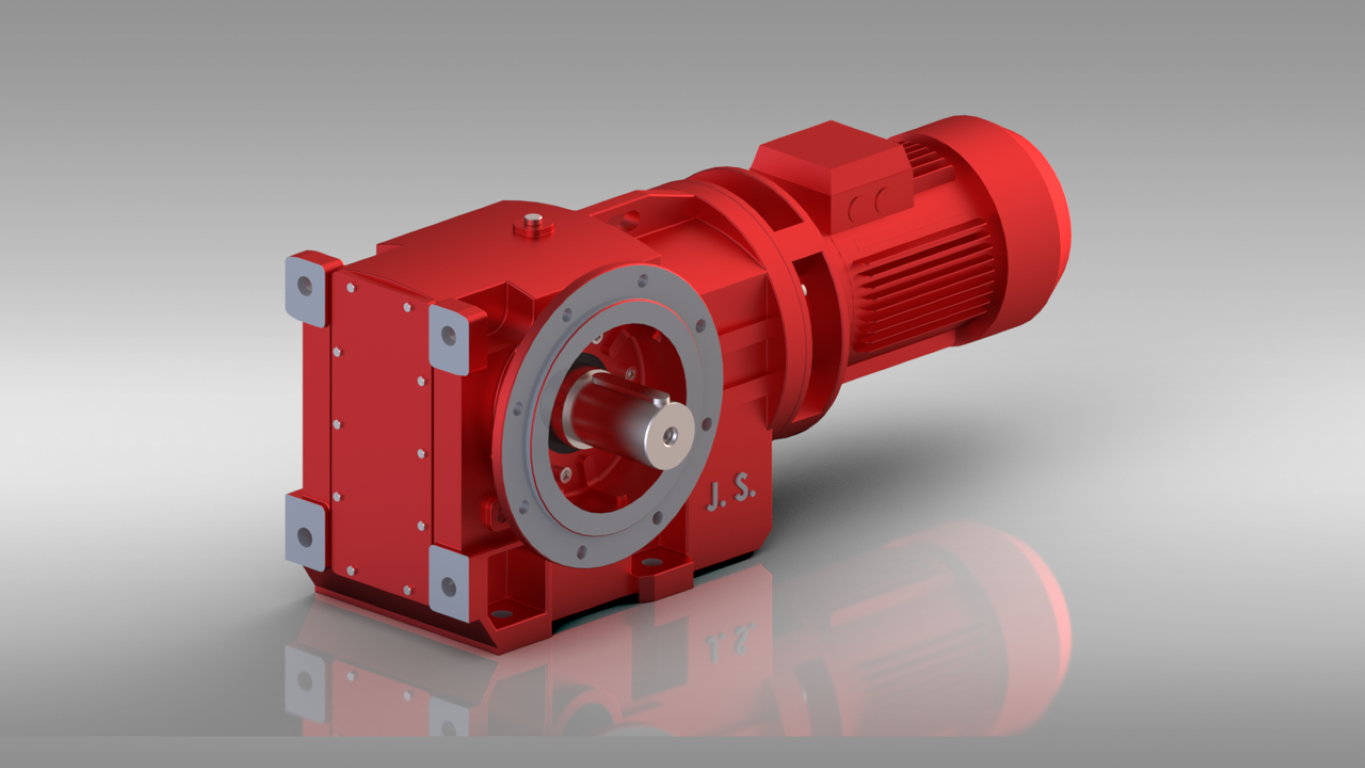

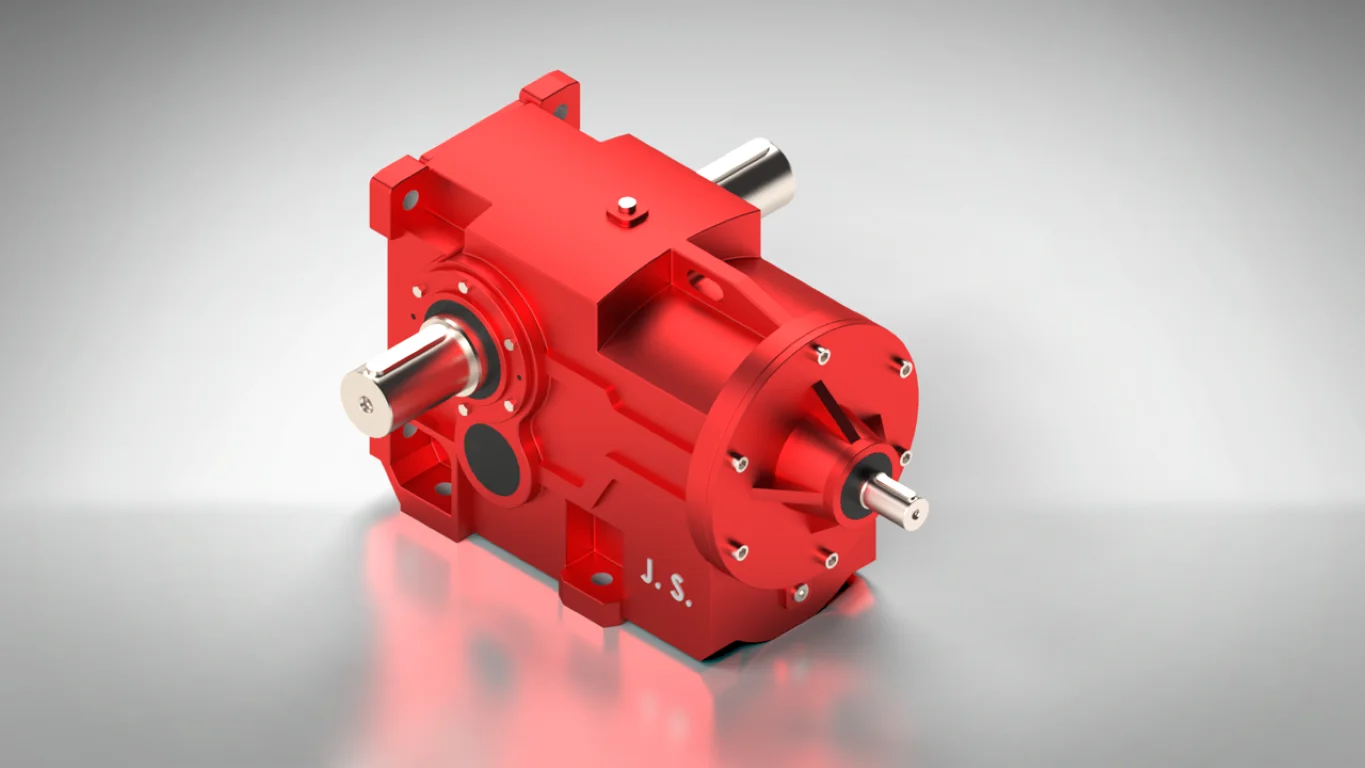

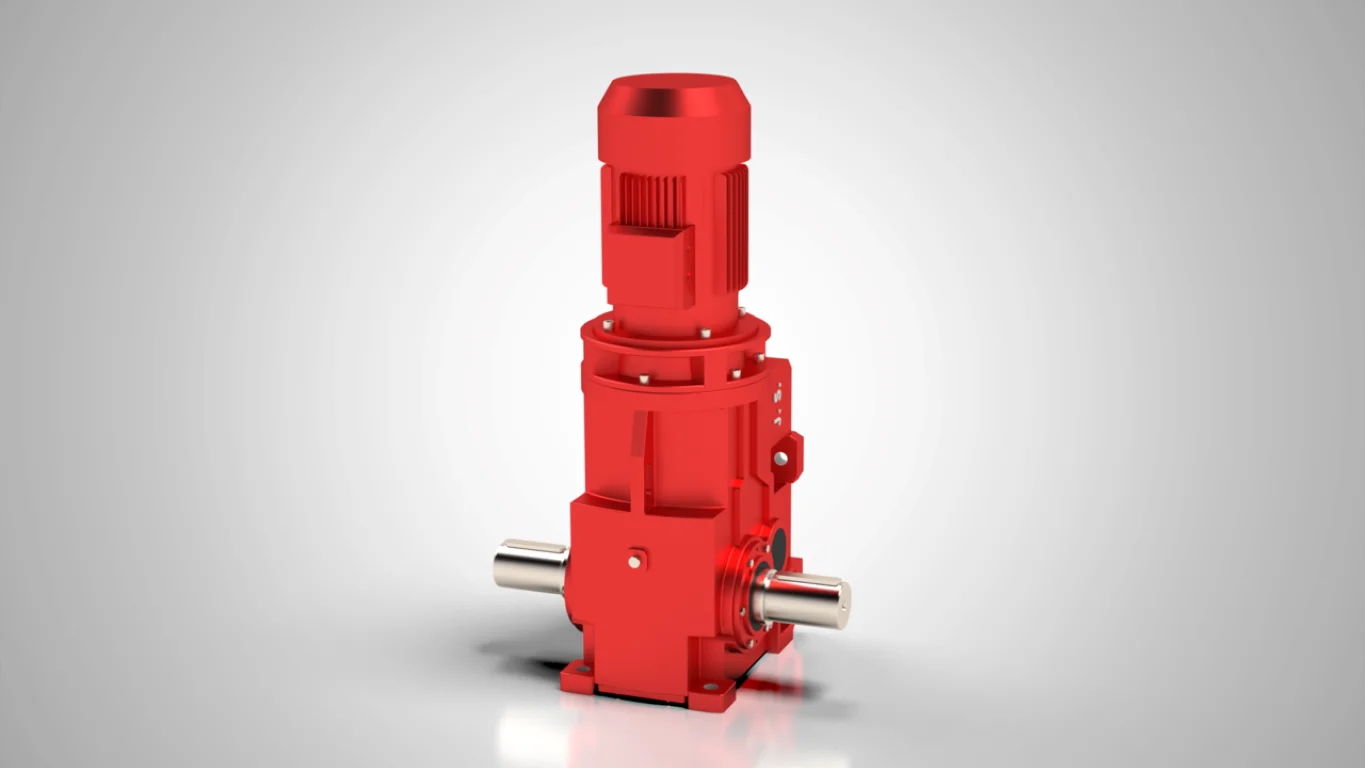

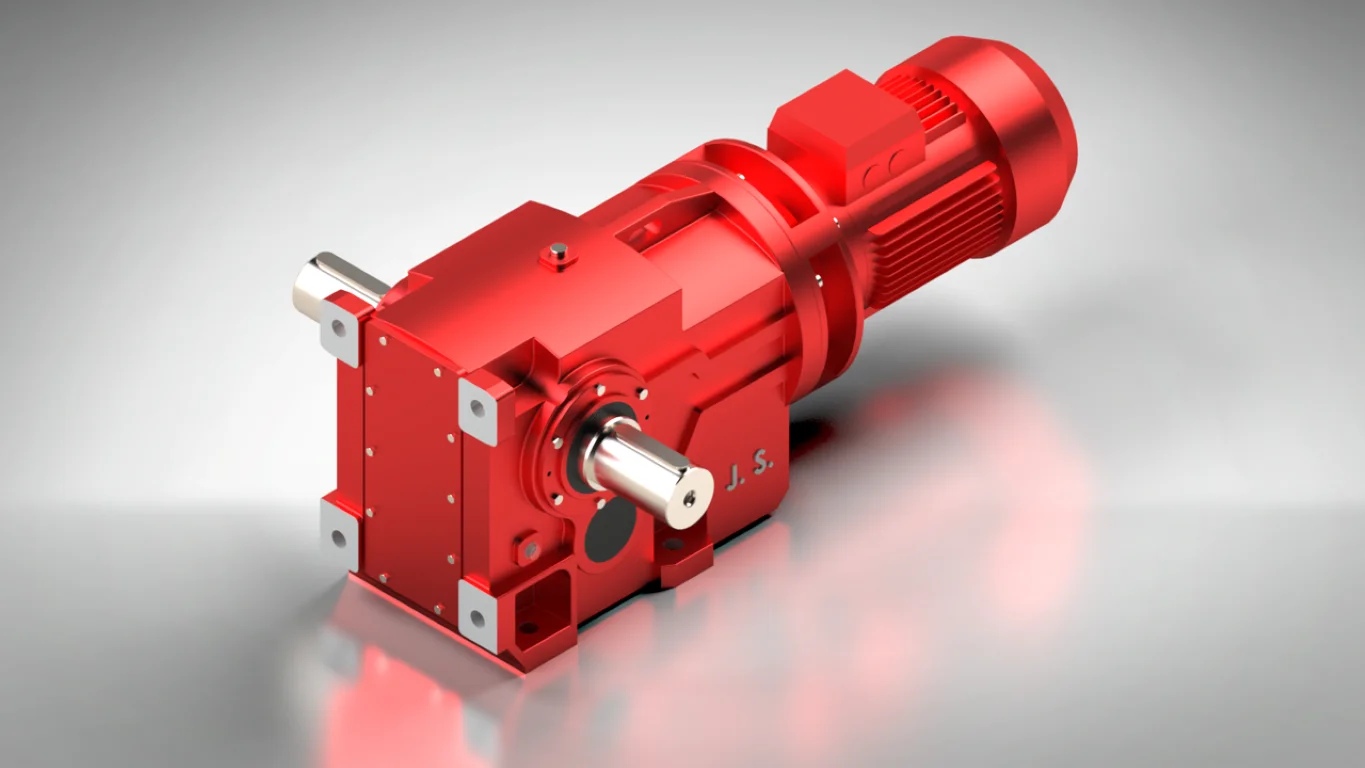

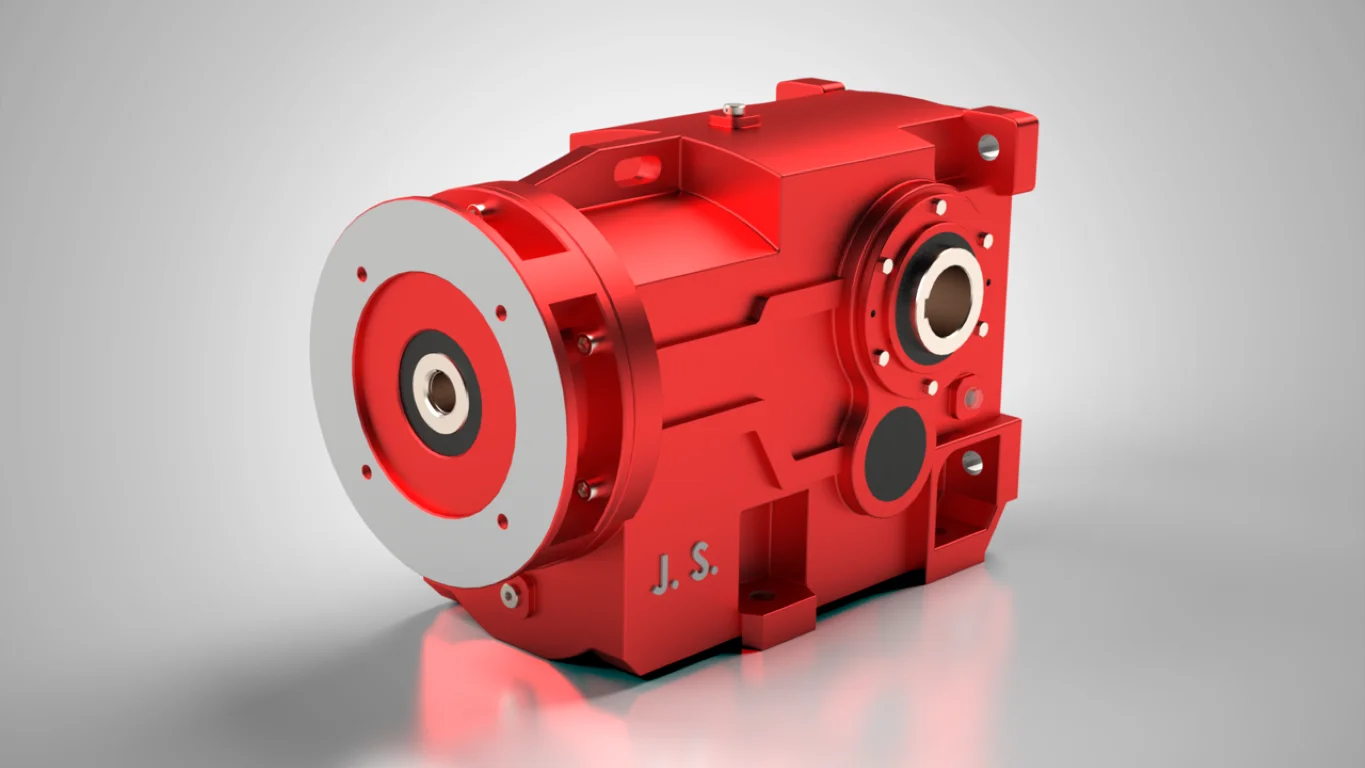

K-Series – Right Angle Helical Bevel Geared Motor
New Product Launch K-SERIES - April 2024
Overview
Helical bevel geared motors are angular geared motors where the gear unit output shaft is rotated through 90° to the motor shaft. Helical bevel geared units can either have a solid or a hollow shaft.
Broad Specification
| Model | output hollow |
| K-07 | 50 MM |
| K-08 | 60 MM |
| K-09 | 70 MM |
| K-10 | 90 MM |
| K-12 | 100 MM |
| Output torque | 180 N.m to 20000 N.m |
| Gearbox Ratio | 10:1 to 240:1 Available |
| Input Hollow Frame IEC | B5 type only available |
| Input HP | 2 HP to 75 HP |
| Input Solid Shaft | Available |
