HT Series Geared Motor
HT Series Geared Motor
Engineered for Hoisting Excellence

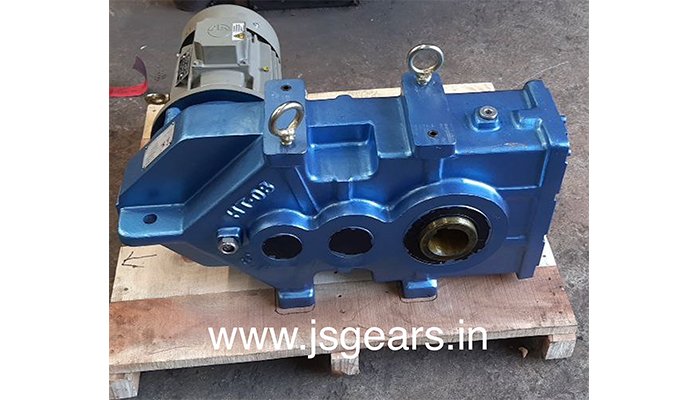

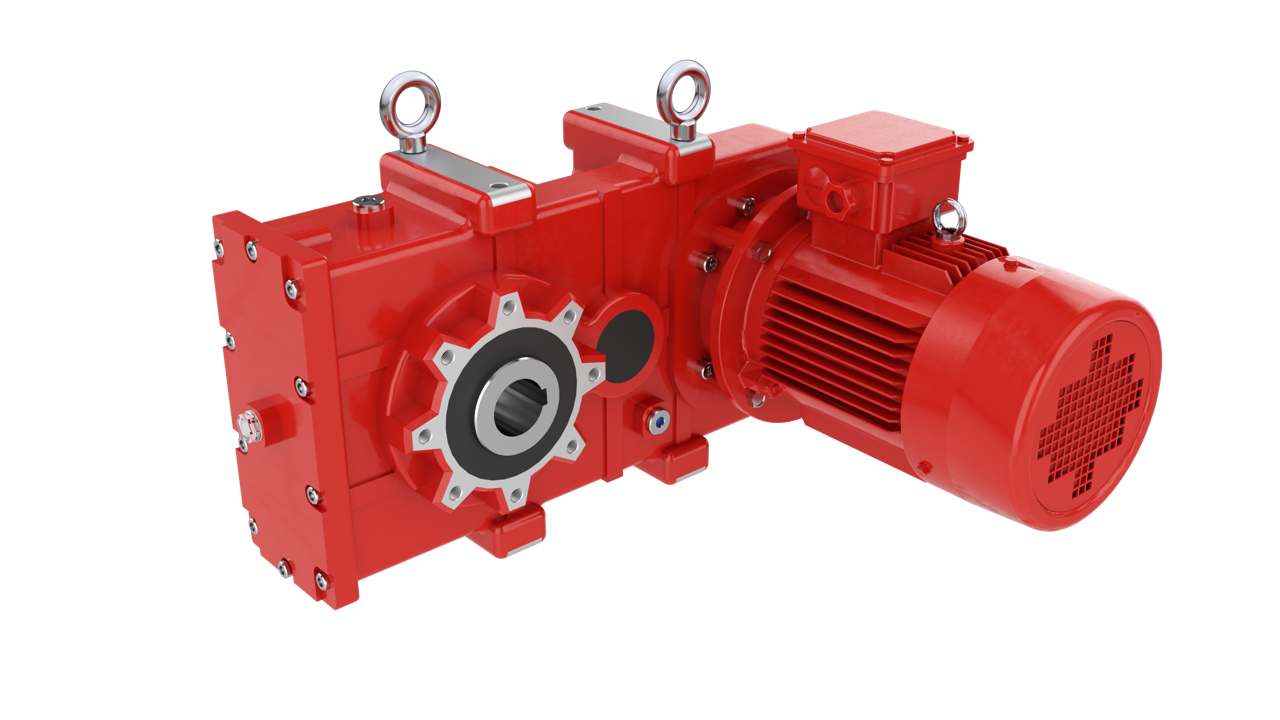

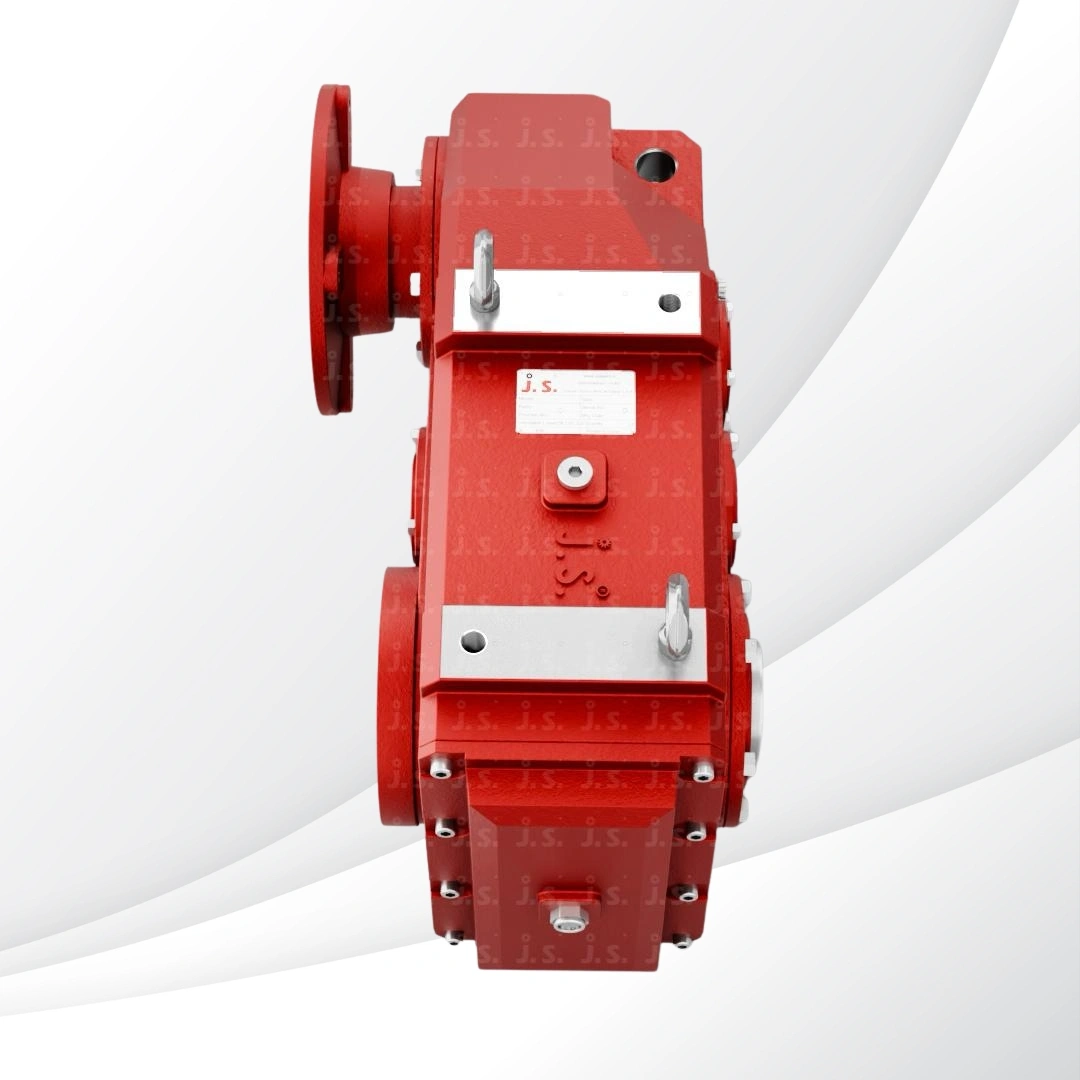

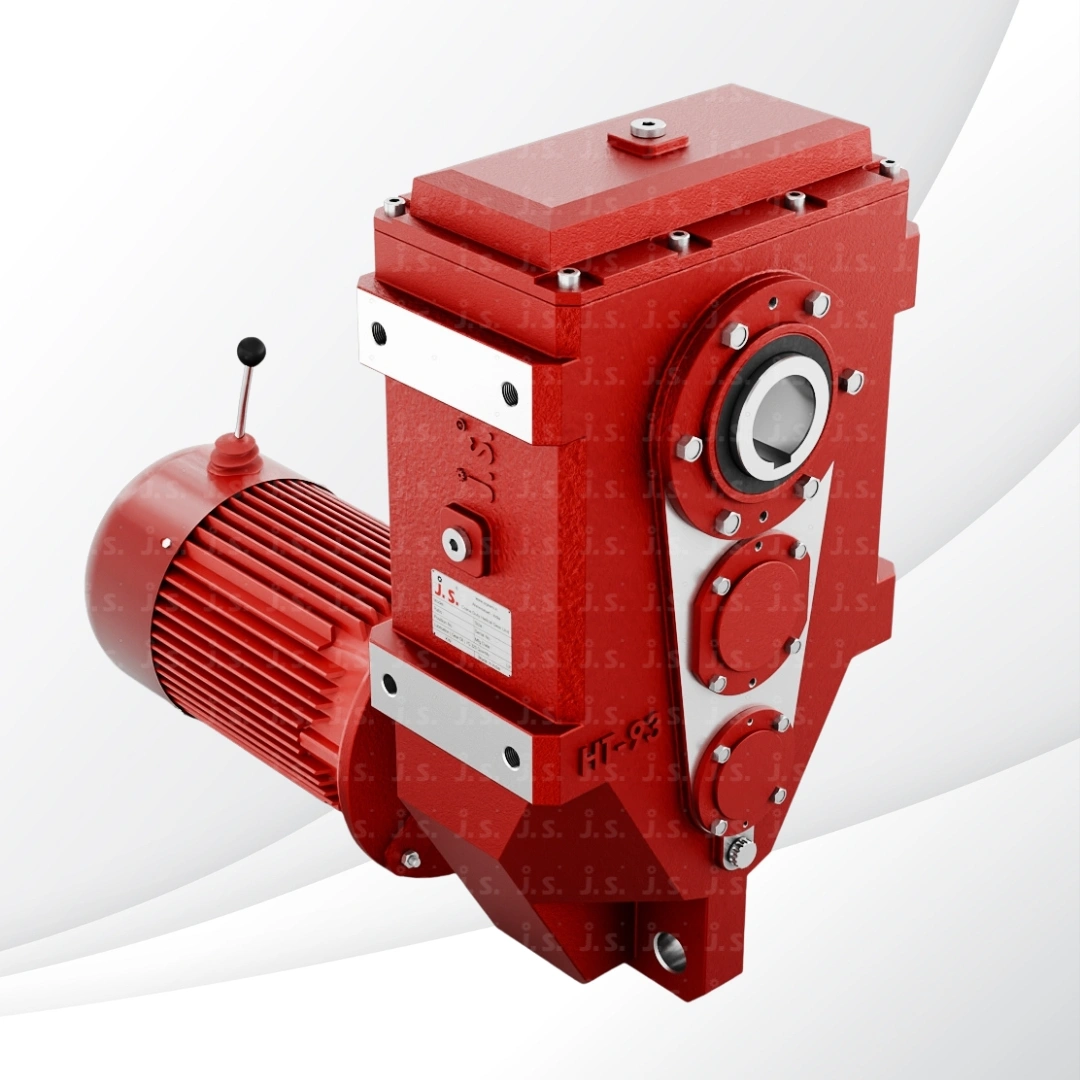

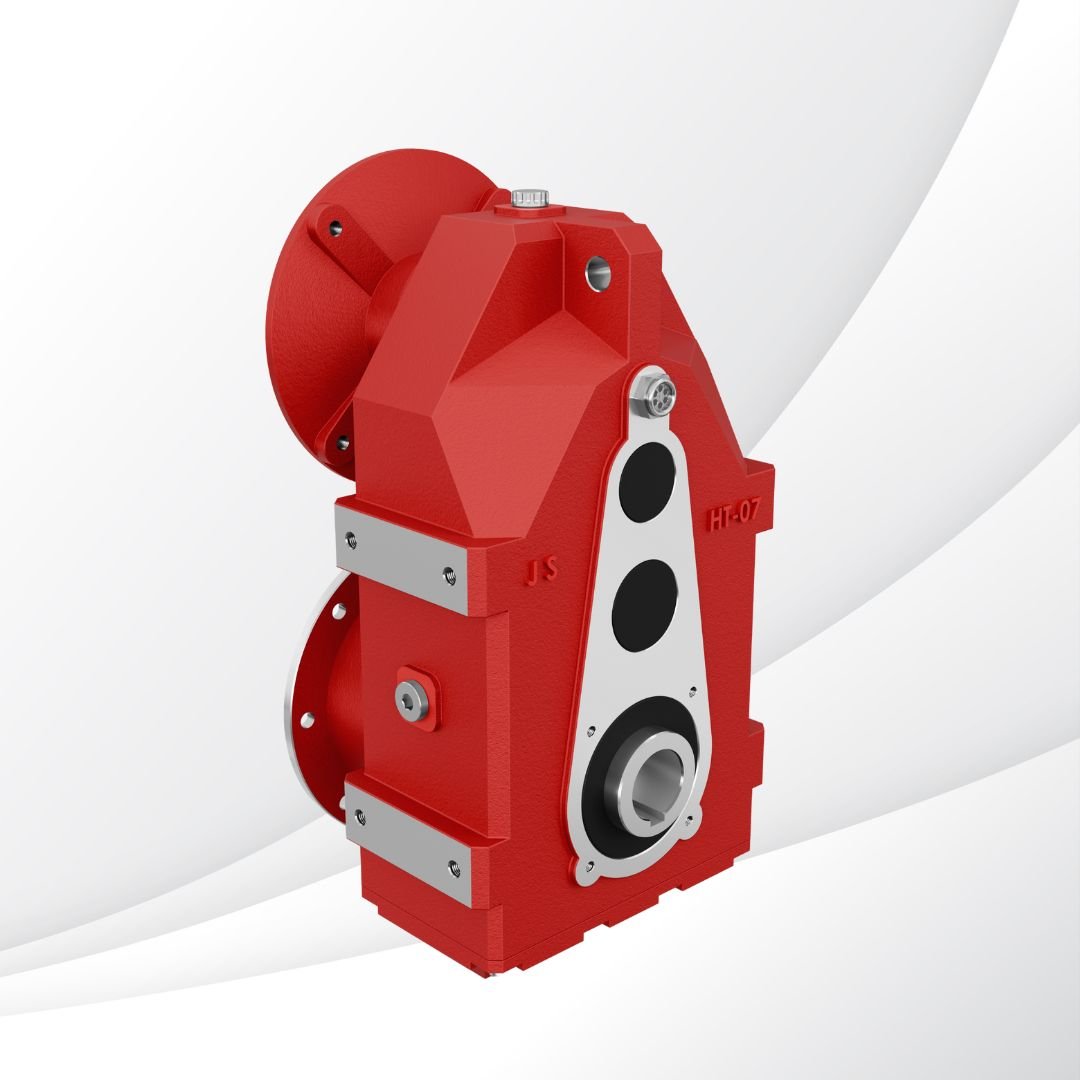

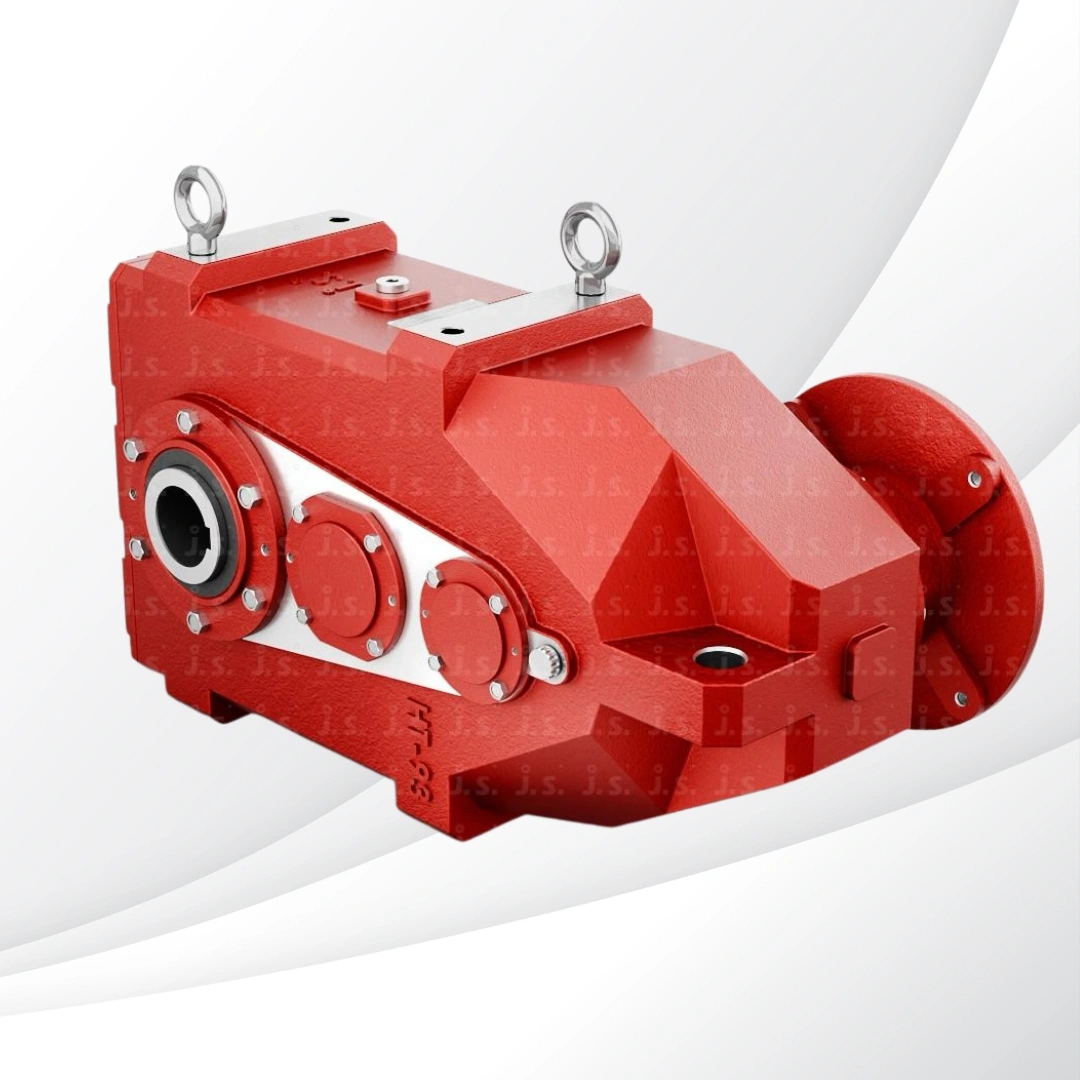

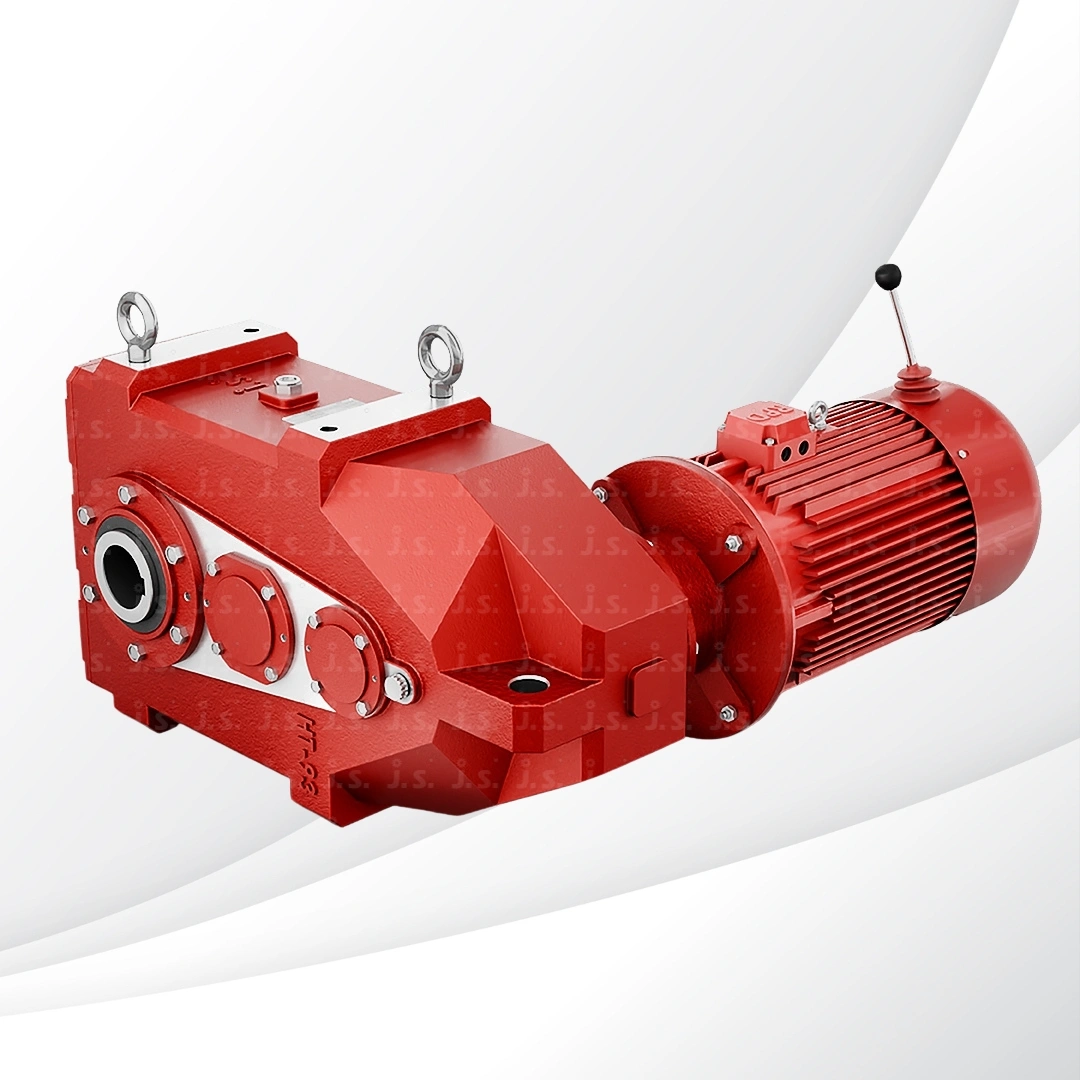

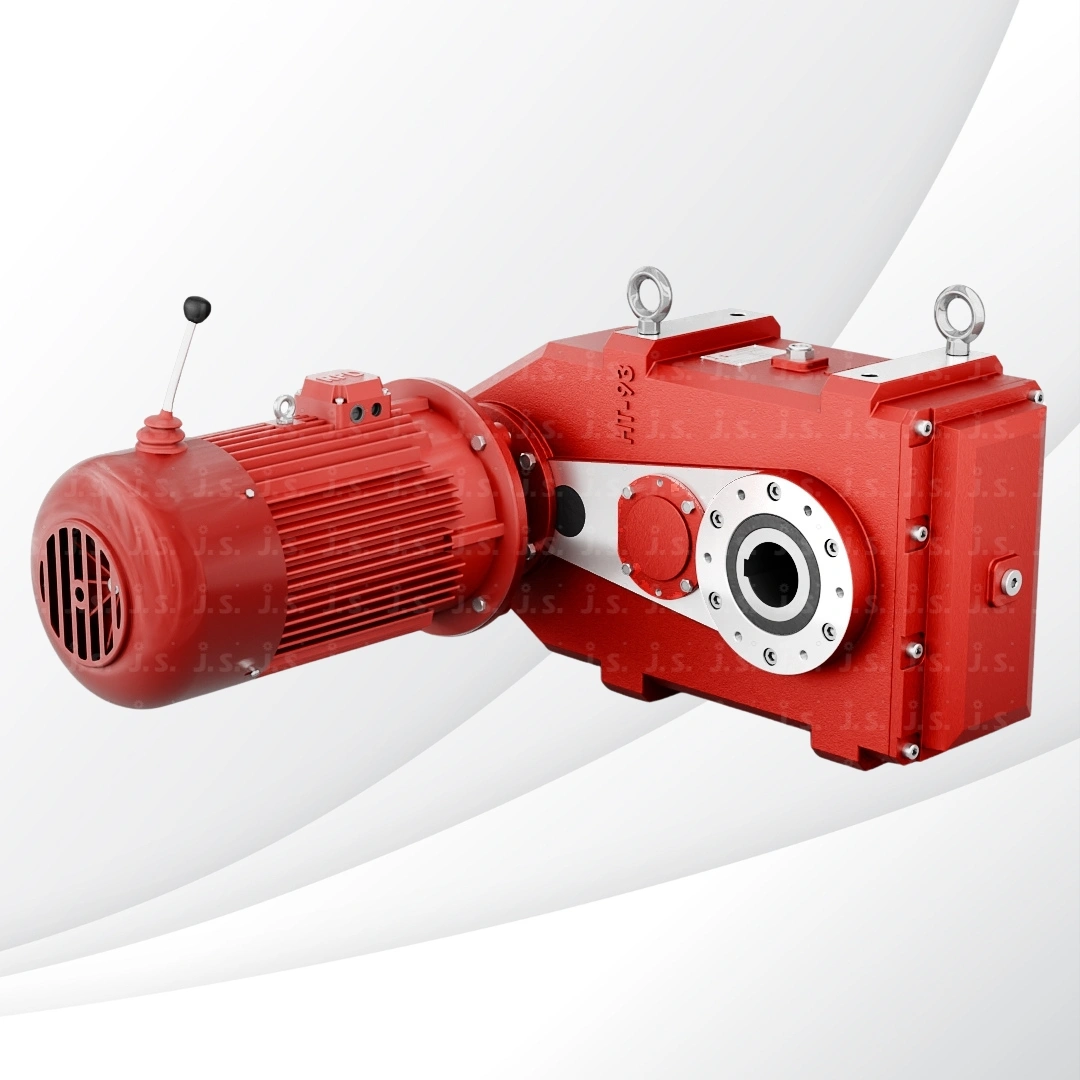

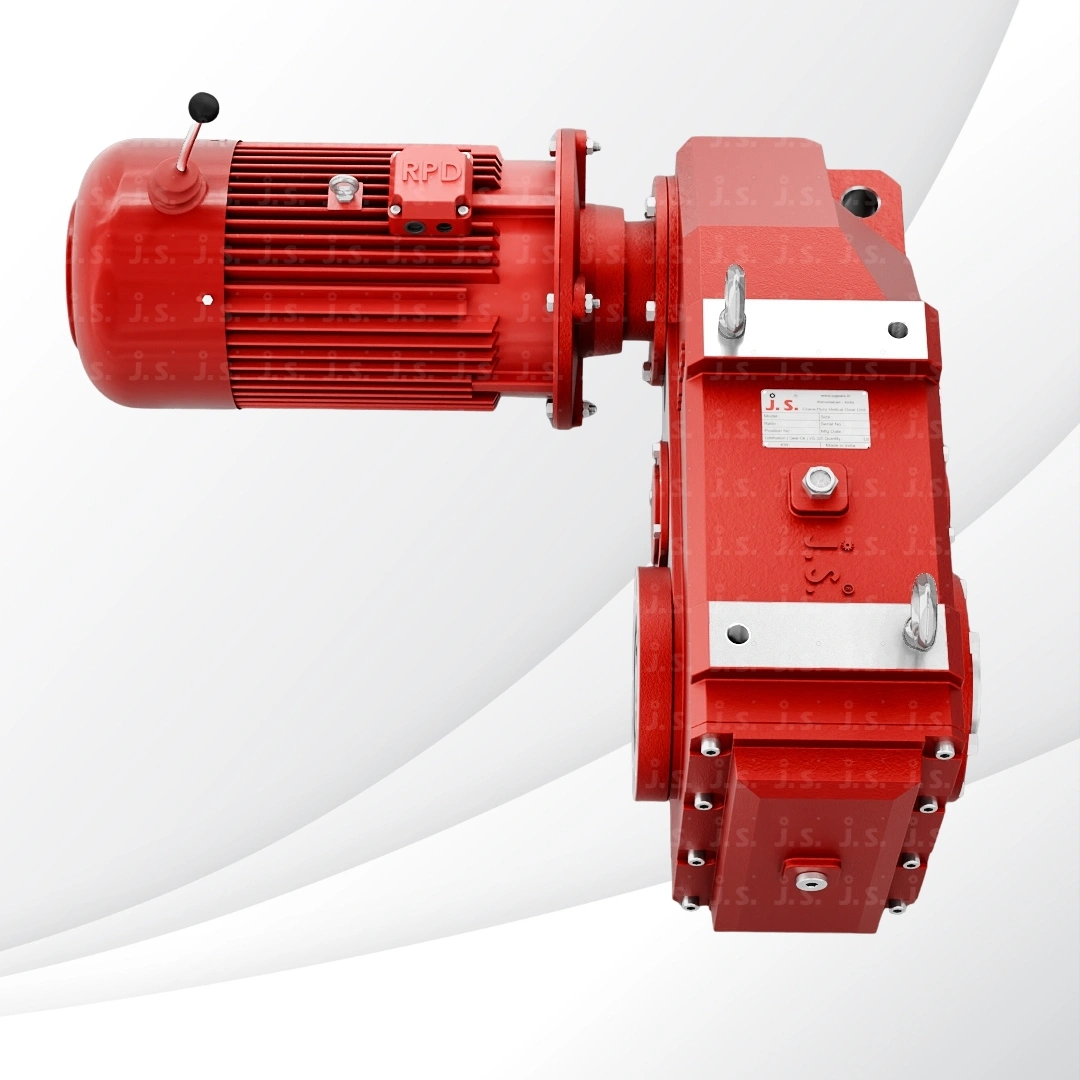

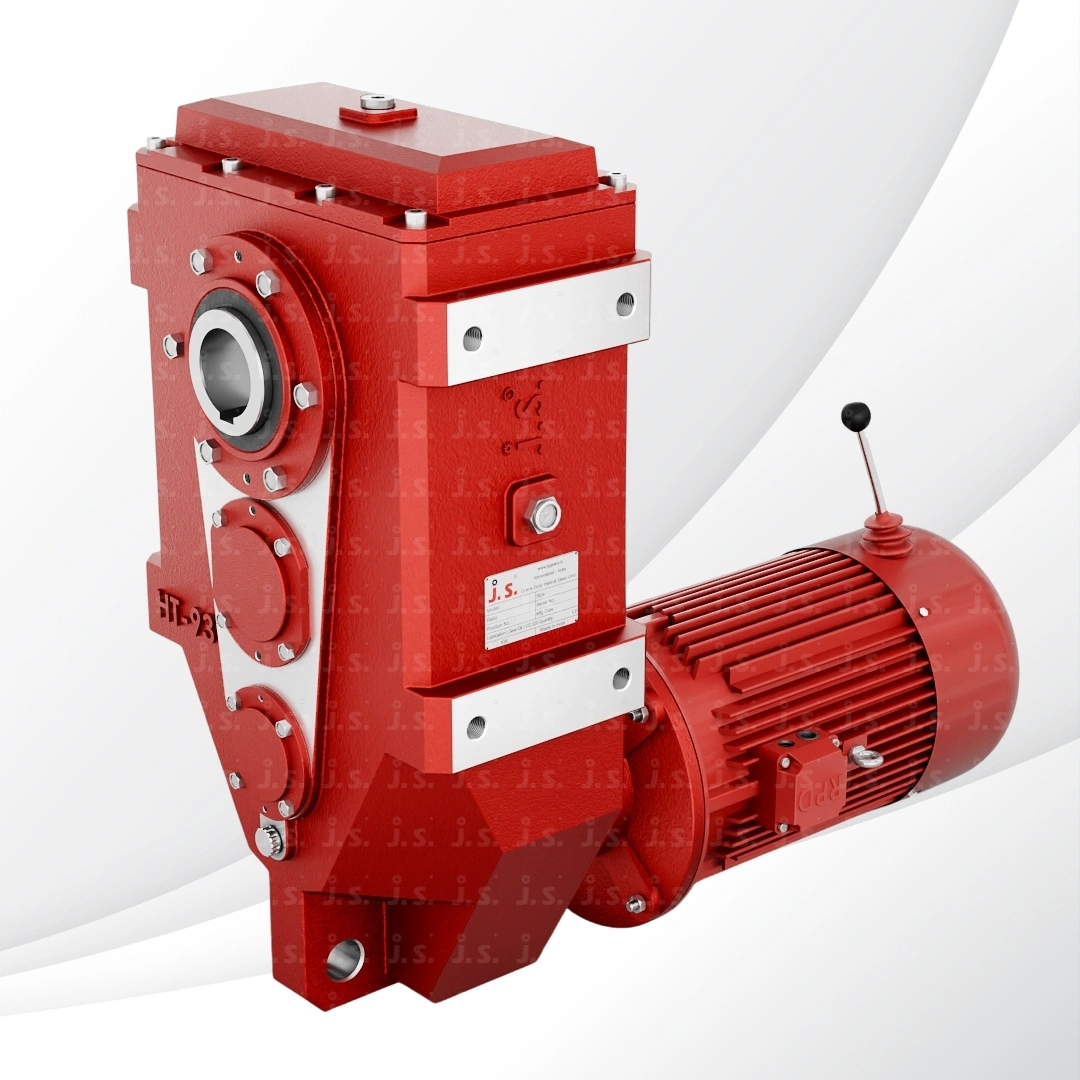

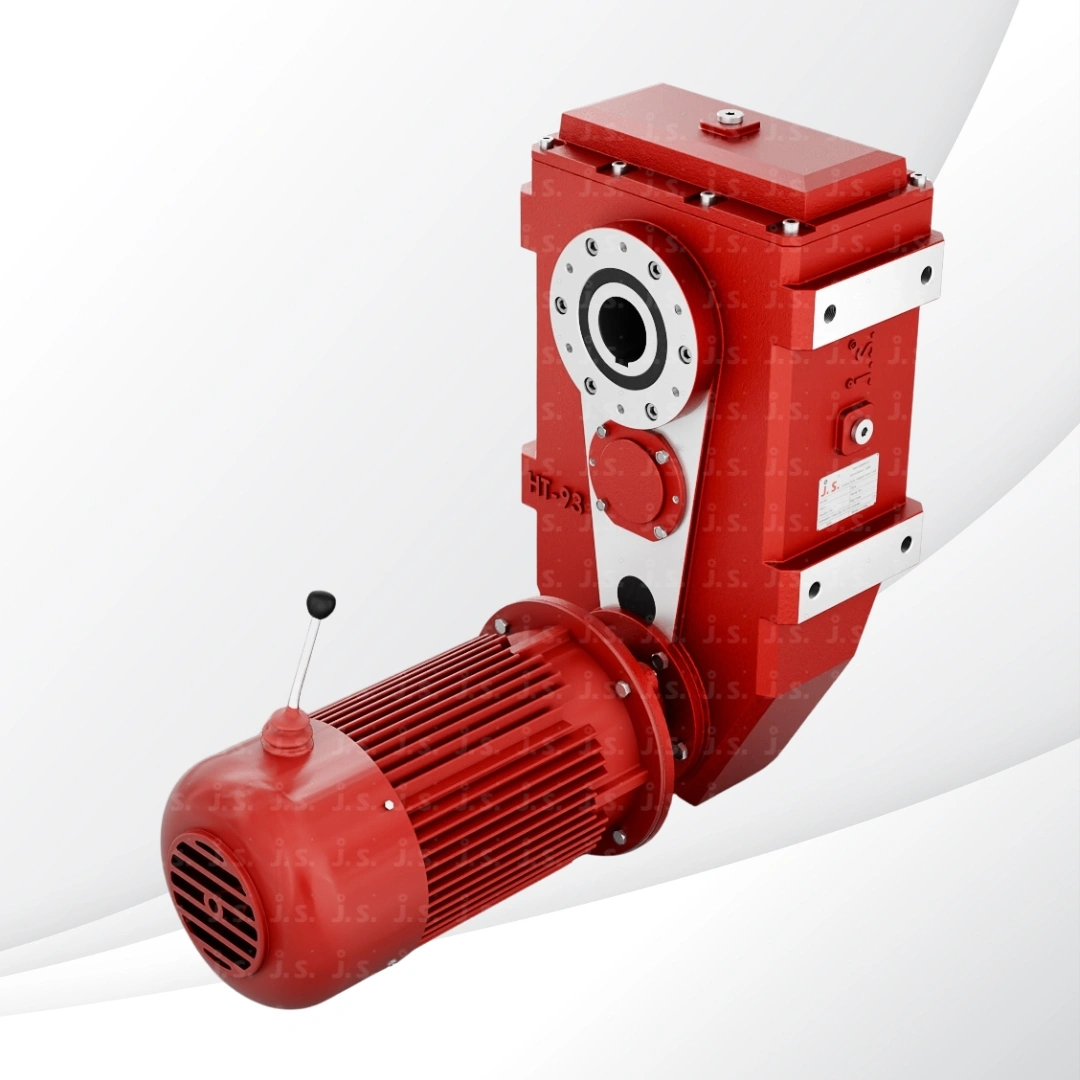

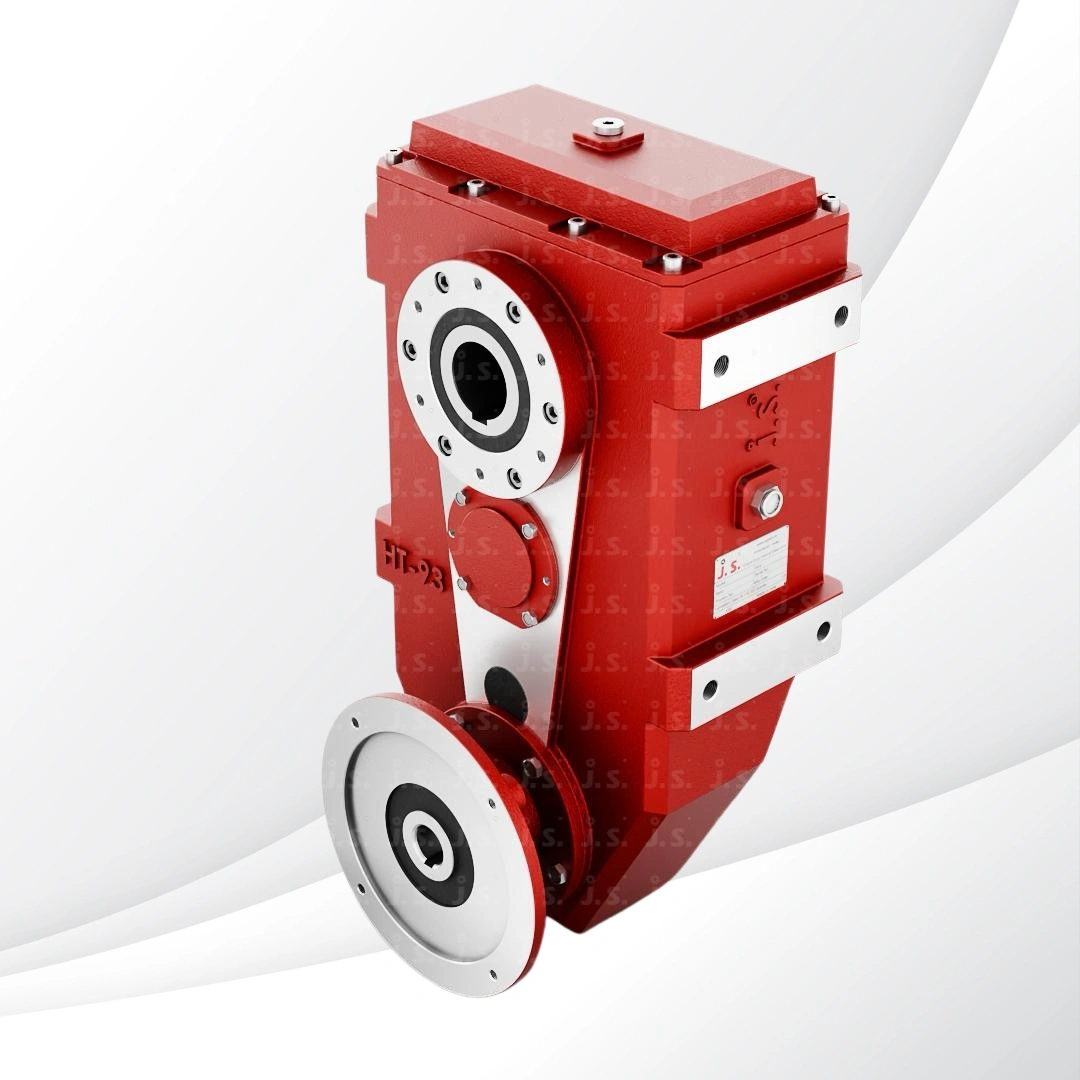

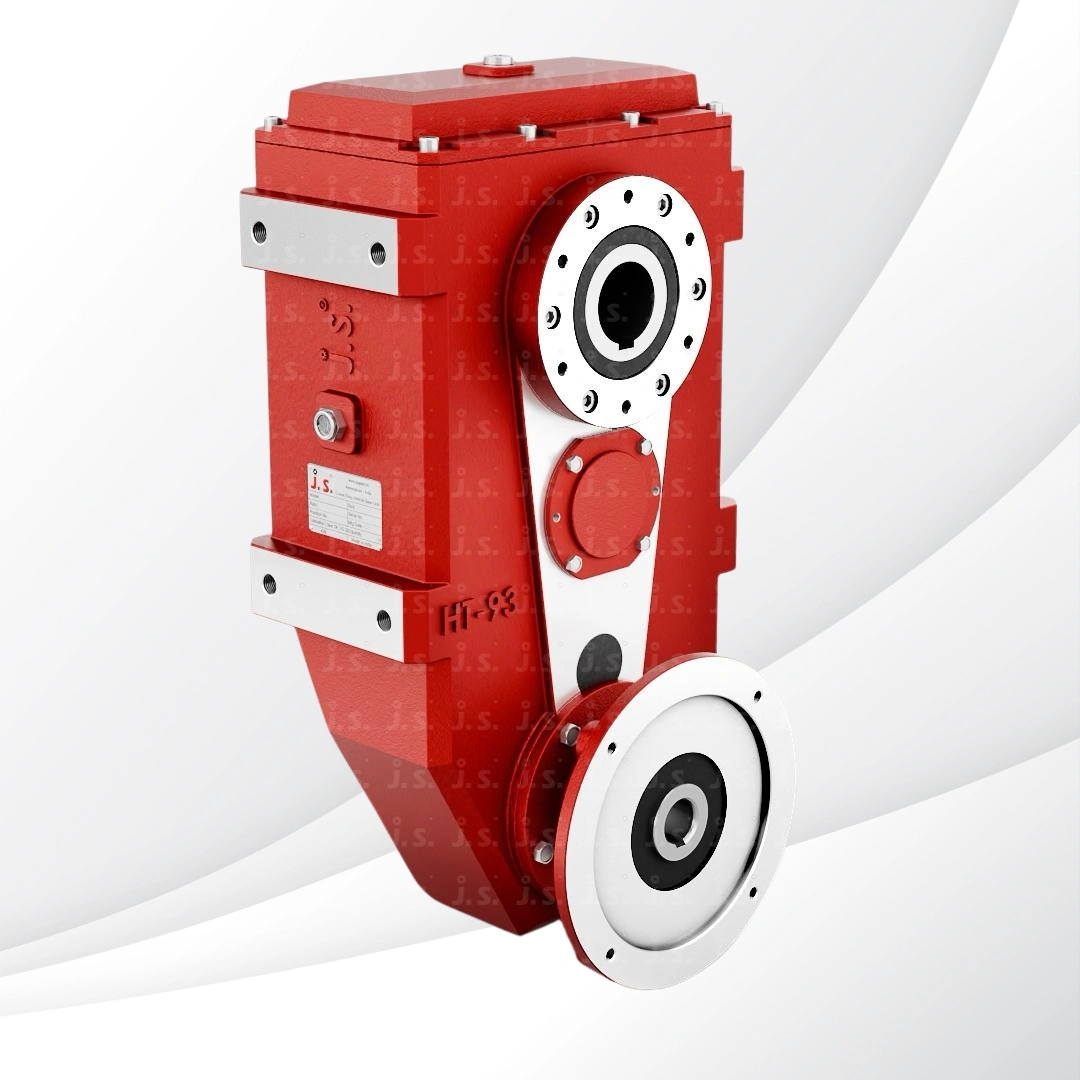

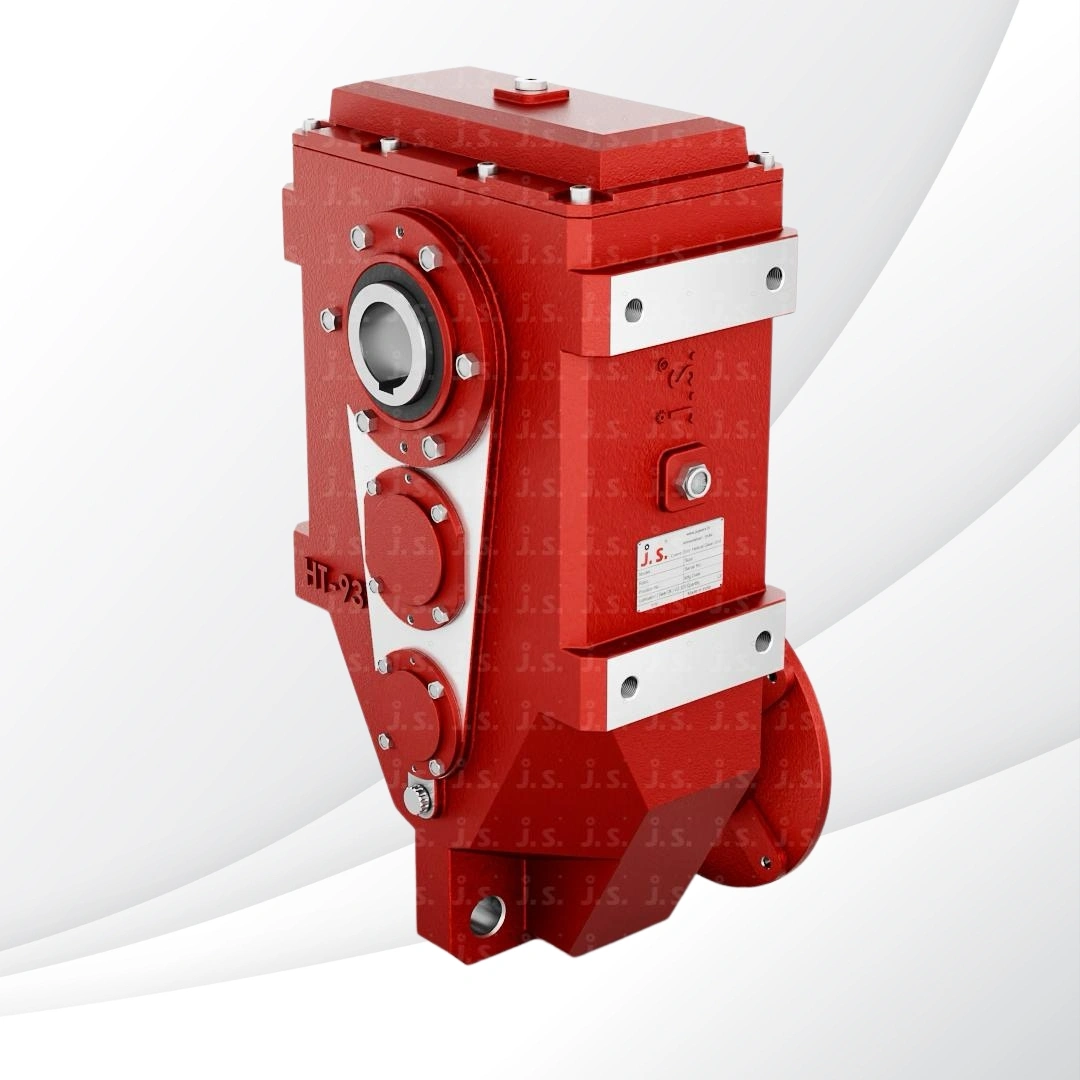

The HT Series Geared Motor by JS Gear is purpose-built for Single Girder EOT Crane hoisting applications. Designed with precision and reliability in mind, it ensures smooth performance, effortless fitment, and long-lasting durability.
Why Choose HT Series?
Optimized Design: Longer center distance for easy installation—no fouling with drum or motor.

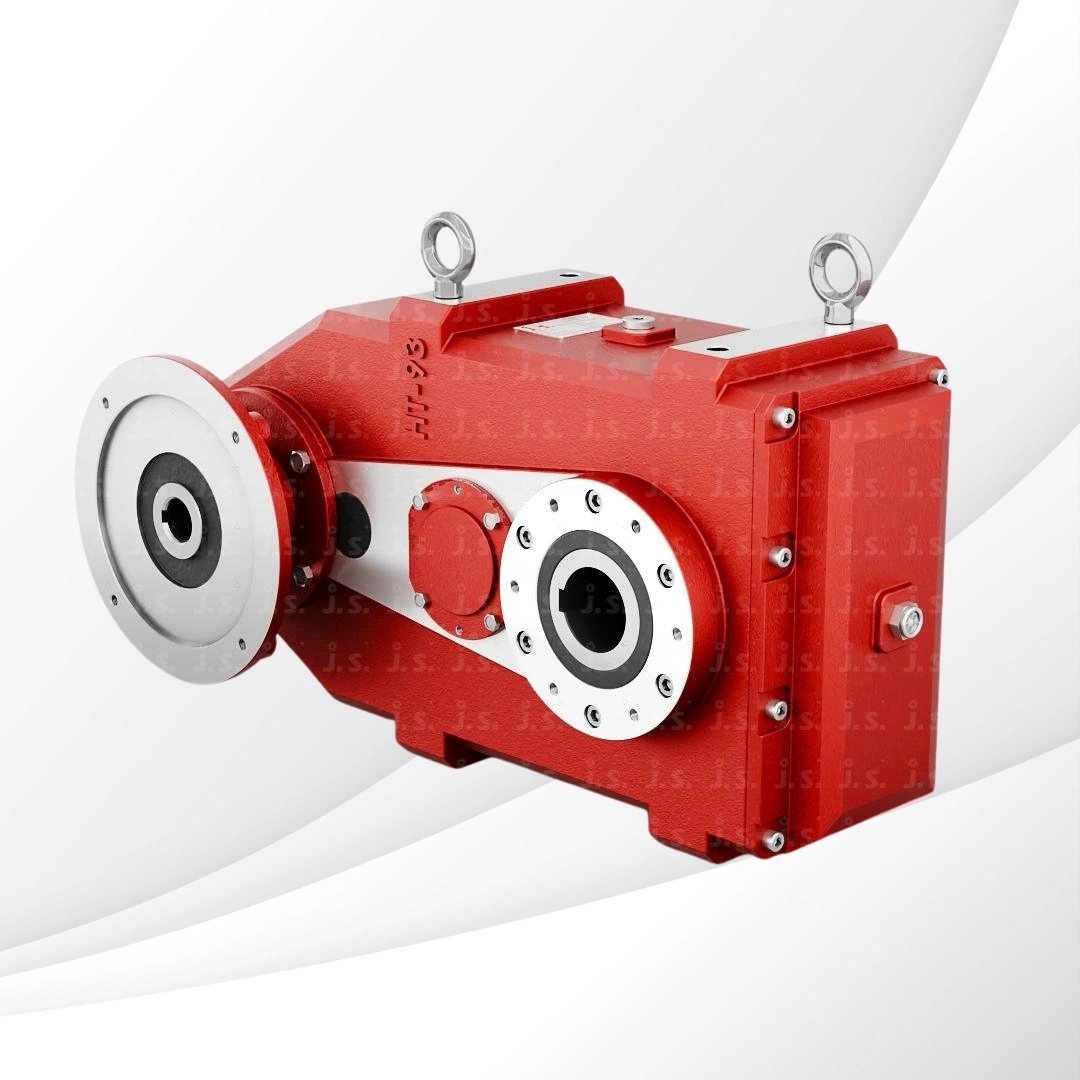

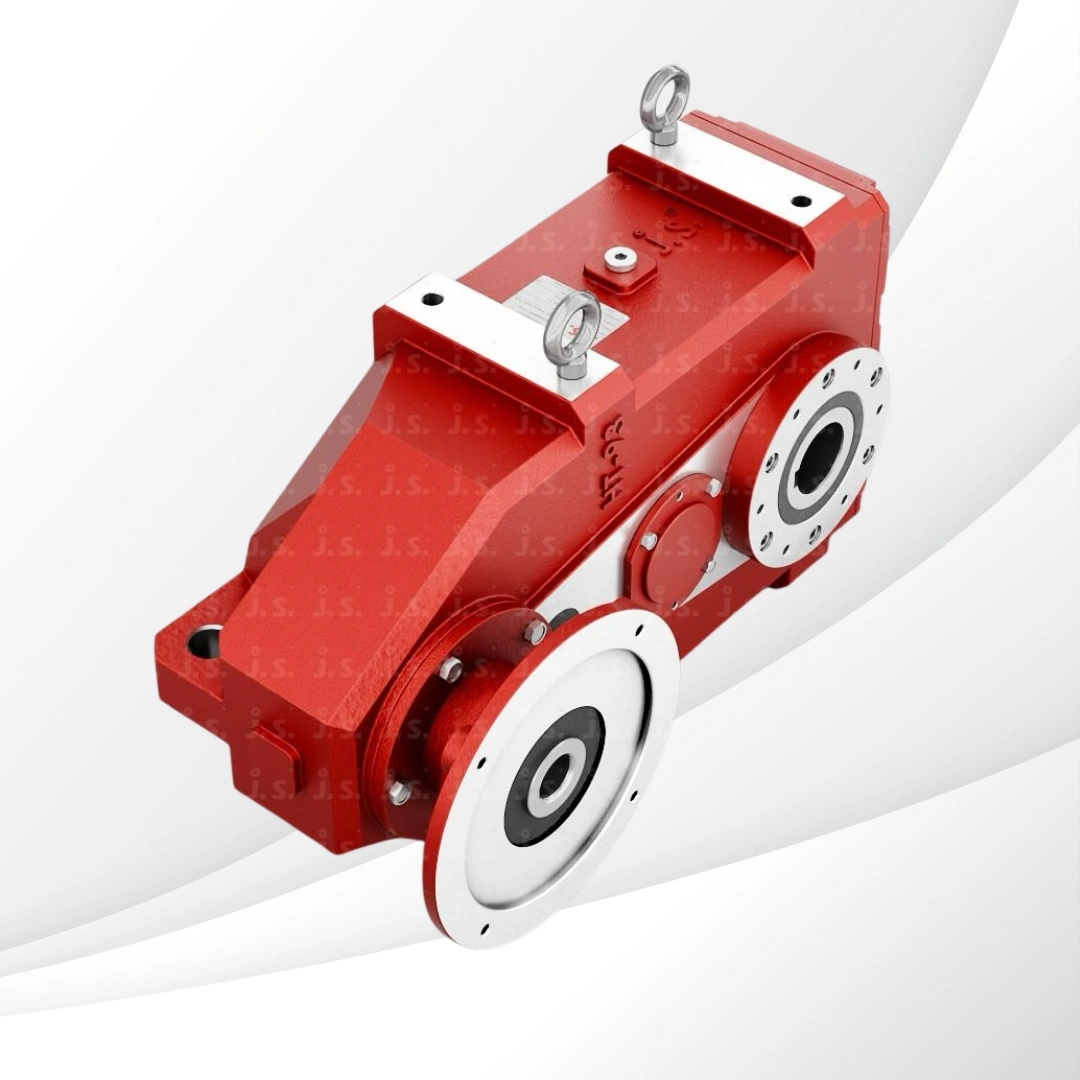

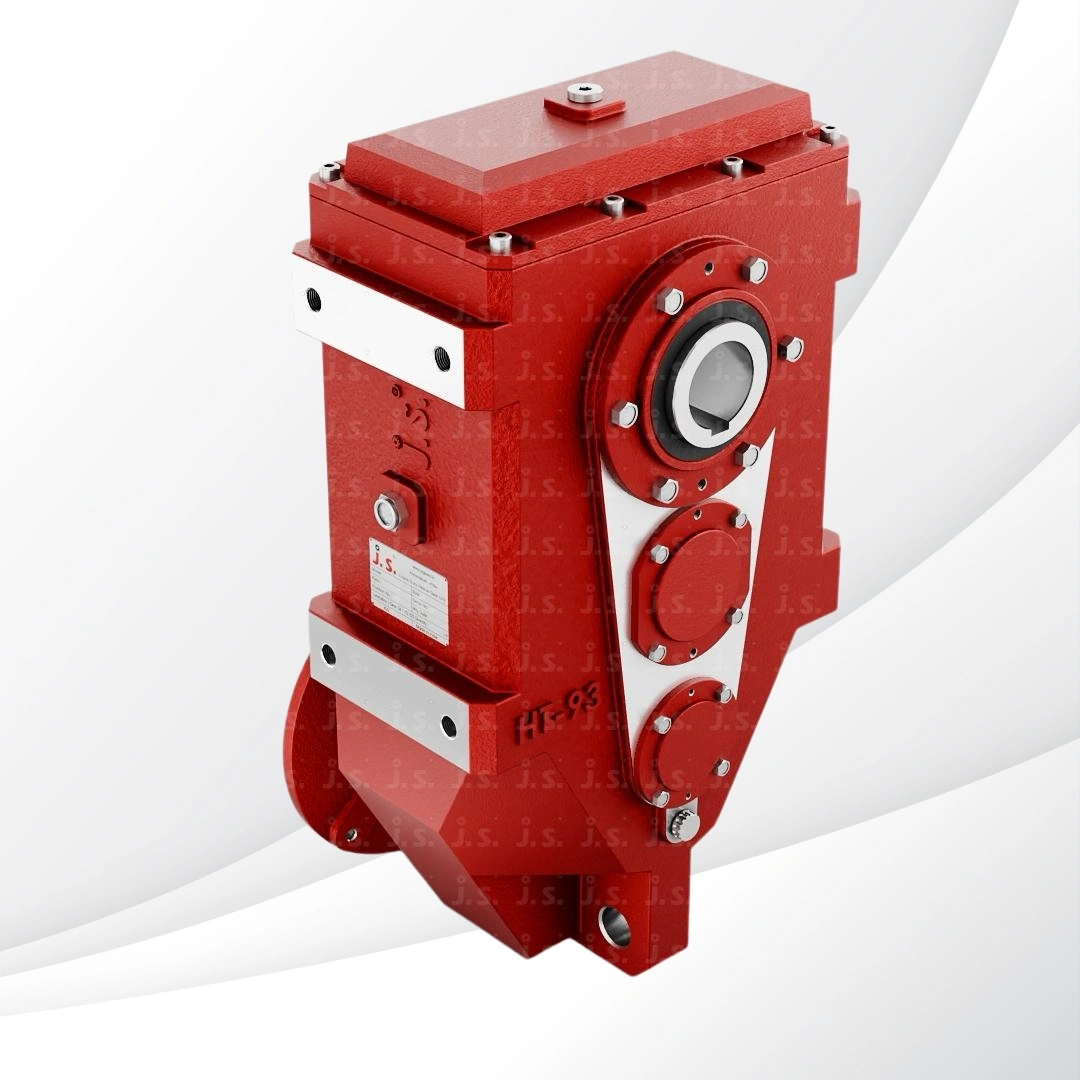

Smart Assembly: Standard input hollow and output hollow shaft with output flange for quick mounting.
Precision Engineering: High-grade alloy steel gears, case-hardened and CNC profile ground to DIN 5–6 accuracy.
Quiet & Reliable: Low noise, excellent stability, and minimal maintenance needs.
Built to Last: Robust construction for heavy-duty crane operations.
Performance you can trust. Reliability you can count on.
| Gearbox Model | 2 Stage | 3 Stage | Output Bore | Recommended Motor Range |
| 33 | HT-32 | HT-33 | 25 mm | 0.25 – 0.75 HP |
| 43 | HT-42 | HT-43 | 30 mm | 0.5 – 1.5 HP |
| 53 | HT-52 | HT-53 | 35 mm | 0.75 – 2.5 HP |
| 63 | HT-62 | HT-63 | 40 mm | 1 – 5 HP |
| 73 | HT-72 | HT-73 | 50 mm | 2 – 7.5 HP |
| 83 | HT-82 | HT-83 | 60 mm | 3 – 20 HP |
| 93 | HT-92 | HT-93 | 70 mm | 5 – 30 HP |
| 103 | HT-102 | HT-103 | 90 mm | 7.5 – 40 HP |
| Industry | Application |
| Material Handling | Belt Conveyors, Chain Conveyors |
| Crane & Hoist | EOT Crane Drives, Hoisting Drives |
| Shredder Machines | Aluminium Shredder, Scrap Processing |
| Cement Plants | Feeders, Mixers |
| Food Industry | Agitators, Packaging Lines |
| Steel Industry | Transfer Systems |
| Recycling Industry | Crushers, Shredders |
| Duty Type | Recommend Safety Factors |
| Light Duty | 1.2 to 1.5 based on application |
| Medium Duty | 1.4 to 1.9 based on application |
| Heavy Duty | 1.8 to 3.0 based on application |
Superior Quality HT Series Geared Motor Manufacturer
JS Gears is one of the industry giants in HT Series Geared Motor manufactures in India. When space is limited, our products are an excellent choice for all industries. HT Series Geared Motor is suitable for even in the most difficult installation conditions. It can work without making any compromise on performance. Our gear units match the requirements of long operations with high mounting flexibility. Robustness and efficiency of our products make us one of the most favoured HT Series Geared Motor suppliers in India. Call us today to own this highly dynamic and energy-efficient solution.
We are a professional group actively engaged in all types of gearbox units, including shaft mounted gear reducer. We have the expertise to serve any industry. We can match any size and design to suit the requirements of our clients from any industry. Our crane duty helical gearboxes provide outstanding and smooth performance.
